High adaptability, advance R&D and scale-up

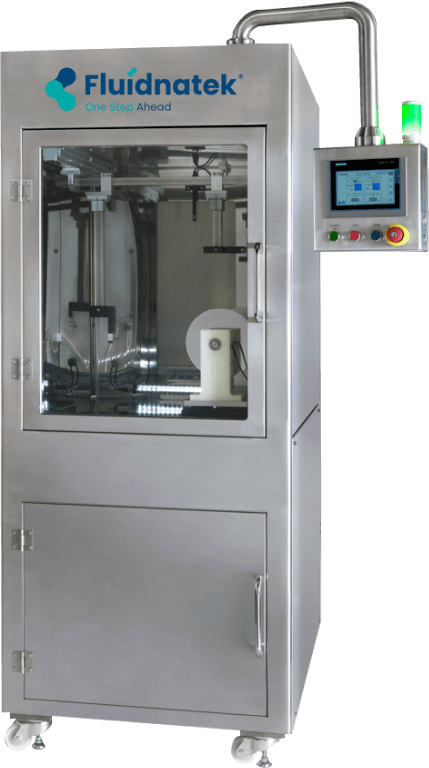

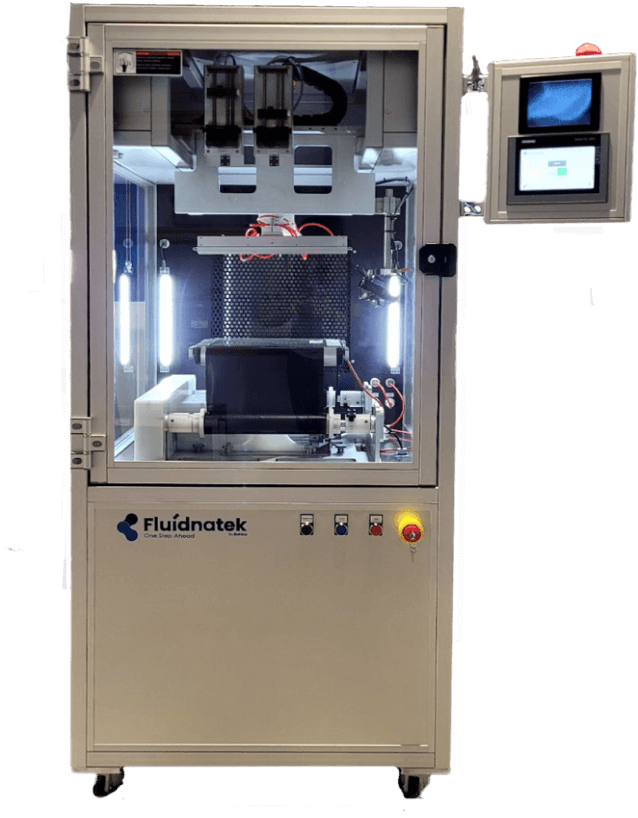

Fluidnatek LE-100
Highly versatile electrospinning machine for advanced R&D, process scaling, and small-scale production of electrospun nanofibers.
his electrospinning machine is ideal for advanced R&D and to take an initial leap towards process scaling, and even small-scale production. Great versatility to work with electrospun nanofibers all along the process.
Possibility of implementing multiple rotating collectors (drum, mandrels, etc.) as well as roll-to-roll collectors for the semi-continuous roll production.
Real-time, in-line thickness metrology system available. In some processes, thickness control is critical for validating the manufactured electrospun product at the time the uniformity of the membrane of electrospun nanofibers must be excellent.
Environmental control is critical to ensuring consistent and reproducible production. The Fluidnatek LE-100 can be fitted with an Environmental Control Unit (ECU) capable of heating-cooling and drying-humidifying, with ranges of 18-45ºC for temperature and 10-80% for relative humidity (see psychrometric chart).
A multitude of advanced tools: tools geared towards Industry 4.0, needle-based & needle-less technology available, real-time data collection tools for process and equipment variables with configurable dashboard and alarm management, advanced process automation, electro-blow spinning ability, dummy collector, etc.
The Fluidnatek LE-100 is so adaptable that it offers a wide variety of spinning arrangements inside its large experimental chamber. Possibility of automated movement on X-Y-Z axes and simultaneous deposition of electrospun nanofibers of 2-3 different solutions.
FLUIDNATEK LE-100 Technical Information
See all the features in our information sheet.
The product sheet provides accurate and detailed information to help you meet your needs. Details make the difference, so choosing the right process to meet your needs will mean more comfort and the best user experience.
See all the features in our technical information sheet.
Some of the features of our Fluidnatek LE-100 machine are:
- Needle-based & needle-less spinning available in the same equipment.
- Multi-nozzle injectors with field deflectors (up to 40 nozzles).
- Roll-to-Roll collector & Rotating collectors.
- Software tools for GMP/ISO certification: audit trail & batch control.
- In-line area density metrology system in real time.
- Climate control units: ECU and DHU.
