FLUIDNATEK LE-50 G2

When processing power and benchtop machine are combined.

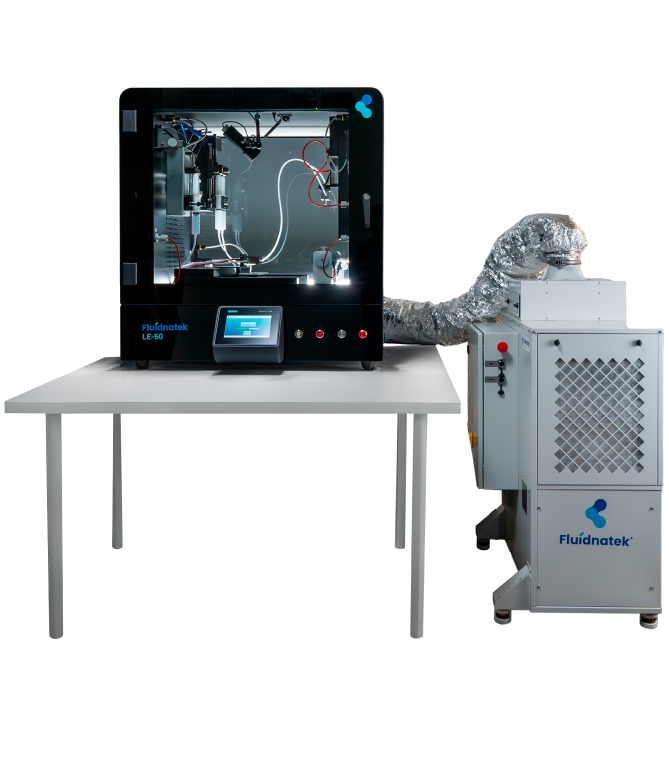

Fluidnatek LE-50 G2
Advanced benchtop nanofiber electrospinning machine for R&D with sophisticated process control.

Environmental control is critical to ensuring consistent and reproducible proof of concept. The Fluidnatek LE-50 G2 can be fitted with an Environmental Control Unit (ECU) capable of heating-cooling and drying-humidifying, with ranges of 18-45ºC for temperature and 10-80% for relative humidity.

Although it is an advanced nanofiber electrospinning machine, its compact design and small size (benchtop electrospinning machine) mean it can located in small spaces in the lab where free space is often scarce.

It is an ideal nanofiber electrospinning machine when R&D projects with advanced and versatile functions are wanted or required, including precise, sophisticated process control.

Advanced functions that give the user extensive process flexibility, including:

  • Needle-less technologies available in one single platform.
  • High-pressure syringe pumps for precise solution feeding (even with viscous solutions).
  • Secondary independent spinning stage for dual spinning: create hybrid structures.
  • Multi-emitter spinning injectors with field deflectors.
  • Multiple rotating collectors and static flat plate collector.
  • Electrospinning, electrospraying and electro-blow spinning.
  • Taylor cone visualization system enabling videorecording.
  • Tubeless solution dispensing system + Solution heating device up to 120ºC.
  • Advanced data collection tools in real time.
  • Advanced process automation.
  • Big experimental chamber for sophisticated spinning arrangements

FLUIDNATEK LE-50 G2 Technical Information

The product sheet provides accurate and detailed information to help you meet your needs. Details make the difference, so choosing the right process to meet your needs will mean more comfort and the best user experience.

See all the features in our technical information sheet.

Some of the features of our Fluidnatek LE-50 G2 machine are:

  • Actively regulated exhaust system: high safety standards.
  • Needle-based & needle-less spinning available in the same equipment.
  • Multi-nozzle injectors with field deflectors.
  • Secondary independent spinning stage for dual spinning: simultaneous deposition of two materials (hybrid structures).
  • Climate control units: ECU and DHU.
